Product Data Sheet

Main Features

Manufacturer/Supplier: Tyco Electronics
Manufacturer Part Number: E535675
Manufacturer Website Address: www.tycoelectronics.com
Brand Name: Elo
Product Series: 5000
Product Model: 1528L

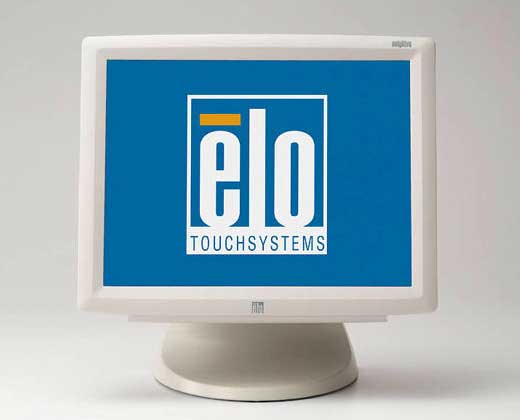

Product Name: 5000 Series 1528L Medical Desktop Touchscreen LCD Monitor
Marketing Information: The 1528L 15" LCD medical desktop touchmonitor is a truly integrated solution for medical equipment OEMs and health care system integrators seeking a reliable, durable and cost-effective medical grade touchmonitor. Typical applications include healthcare providers, patient self-service, and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The innovative IPX1 enclosure design, coupled with the addition of a special gasket, ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills.
Product Type: LCD Touchscreen Monitor
Screen Size: 15"
Screen Mode: XGA
Maximum Response Time: 8 ms
Aspect Ratio: 4:3
Maximum Resolution: 1024 x 768
Standard Refresh Rate: 75 Hz
Color Supported: 16.2 Million Colors
Contrast Ratio: 400:1
Brightness: 350 Nit
Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
DVI: Yes
USB: Yes
VGA: Yes
Color: Dark Gray
Height with Stand: 13.80"
Width with Stand: 14"
Depth with Stand: 8"
Weight (Approximate): 15.30 lb
