Product Data Sheet

Main Features
Standard Warranty: 3 Year
Manufacturer/Supplier: Tyco Electronics
Manufacturer Part Number: E760102
Manufacturer Website Address: www.tycoelectronics.com
Brand Name: Elo
Product Model: 1919L

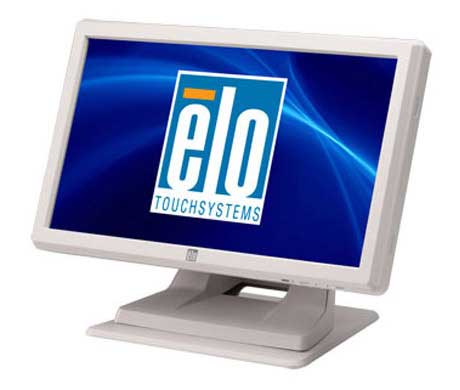

Product Name: 1919L Touchscreen LCD Monitor
Marketing Information: The 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touch monitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications.
Product Type: LCD Touchscreen Monitor
Screen Size: 18.5"
Screen Mode: WXGA
Maximum Response Time: 5 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Adjustable Display Angle: Yes
Maximum Resolution: 1366 x 768
Standard Refresh Rate: 60 Hz
Color Supported: 16.7 Million Colors
Contrast Ratio: 1000:1
Brightness: 250 Nit
Speakers: Yes
Touchscreen: Yes
Touchscreen Type: 5-wire Resistive
USB: Yes
VGA: Yes
Built-in Devices: Speaker
Input Voltage: 110 V AC, 220 V AC
Operating Power Consumption: 17.60 W
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color: Black
Height with Stand: 12.60"
Width with Stand: 17.90"
Depth with Stand: 9.30"
Weight (Approximate): 10.20 lb
Weight with Stand (Approximate): 15.10 lb
Package Contents: 1919L Touchscreen LCD Monitor , Stand
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS, China RoHS, WEEE
