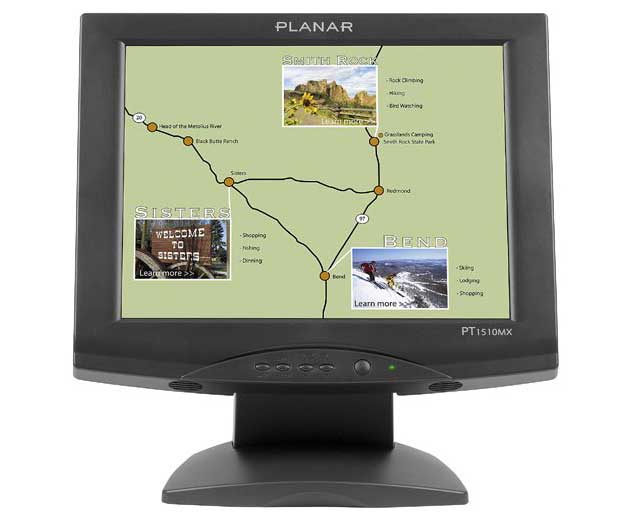

The cost-effective PT1510MX 15" touch screen monitor is perfect for use in retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the touch LCD features 5-wire resistive touch screen and dual RS-232/USB touch screen interface. The touch screen monitor comes standard with a deskstand, but is also compatible with other mounting options using the 75mm VESA standard hole pattern on the back of the monitor.


Features
Speakers Yes
USB Yes
VGA Yes
Product Type LCD Touchscreen Monitor
Manufacturer Part Number 997-3198-00
Manufacturer Website Address www.planar.com
Manufacturer Planar Systems, Inc
Product Model PT1510MX
Product Name PT1510MX Touch Screen LCD Monitor
Product Series PT
Brand Name Planar
Package Contents
- PT1510MX Touch Screen LCD Monitor
- Power Adapter
- Power Cord
- VGA Cable
- RS-232 Cable
- USB Cable (A to B)
- Audio-in Cable
- Driver CD
- User's Guide
- Quick Start Guide

Green Compliant Yes
Green Compliance Certificate/Authority RoHS
China RoHS
Weight (Approximate) 17.90 lb - Without Stand
Color Black
Height 12.3"
Width 15.9"
Depth 2.2"
Input Voltage 110 V AC
220 V AC
Aspect Ratio 4:3
Mount Type Wall Mountable
Screen Size 15"
Screen Mode XGA
Horizontal Viewing Angle 140°
Vertical Viewing Angle 125°
Maximum Response Time 8 ms
Touchscreen Type 5-wire Resistive
Touchscreen Yes
Contrast Ratio 500:1
Brightness 250 Nit
Color Supported 16.7 Million Colors
Maximum Resolution 1024 x 768
Standard Refresh Rate 75 Hz
Standard Warranty 3 Year


Compatibility Operating System:

- Windows Vista
- Windows XP
- XP Embedded
- Windows 2000


Product Attributes
Environmental Certification: RoHS
Color: Black
Color Class: Black
UPC#: 810689031987

Specifications

Model (Family)	PT1510MX (PT Line)
Product Name	PT1510MX
Planar Part Number	997-3198-00 (Black), 997-3394-00 (White)
Viewable Size	15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type	5-wire Resistive
Touchscreen Interface	Dual Serial/USB
Transmissivity	76% (typical)
Contrast Ratio (Typical)	500:1
Viewing Angle (Typical)	140° Horizontal and 125° Vertical
Response Time (Typical)	8 ms
Brightness (w/touchscreen)	190 cd/m²
Brightness (w/o touchscreen)	250 cd/m²
Brightness (Typical)	see Brightness w/touchscreen and Brightness w/o touchscreen
Display Type	LCD Active Matrix Flat Panel Display (TFT)
Display Resolution	1024 x 768
Tilt Range	-3° to +25°
Palette	16.7 million colors
Pixel Pitch	0.297 mm
Refresh Rate	56 to 75 Hz (60 Hz recommended)
Dimensions (W x H x D)	15.1" x 15.1" x 7.1" (383.5 mm x 383.5 mm x 180.3 mm)
Dimensions without Stand	15.1" x 12.3" x 2.2" (383.5 mm x 312.4 mm x 55.9 mm)
Display Weight	With Stand: 10.4 lbs (4.7 kg) (net), 14.9 lbs (6.8 kg) (shipping)
Display Weight (w/o stand)	7.9 lbs (4.7 kg)
Panel Depth	2.2"
Video Inputs	Analog
Audio Output	Integrated stereo speakers with 1W/channel
Compatibility	Windows® 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple® Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections	DC power-in barrel connector, D-sub 15 pin, Audio In connector, D-Sub 9-pin, USB connector
Power Supply	External
Power Requirements	100-240 VAC, 50/60Hz
Power Consumption	30W (3W standby)
Operating Temperature	+5° to +35° C
VESA Compatible/Location	Built-in 75 mm VESA, monitor back
Service and Support	3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only)
Options / Features	Anti-glare coating, Multi-language display, On screen display (OSD), Kensington® security lock function, Built-in 75 mm VESA, back
Product Approvals	UL/c-UL, FCC-Class B, TUV-T mark, CE, RoHS
In the Box	PT1510MX 15" Touchscreen LCD Monitor, Power Adapter, Power Cord, VGA Cable, RS-232 Cable, USB Cable (A to B), Audio-in Cable, Driver CD, User’s Guide, Quick Start Guide
